This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Airplane Flat Car No. 6800LIONEL TRAINS AIRPLANE FLAT CAR No. 6800

black horizontal bar

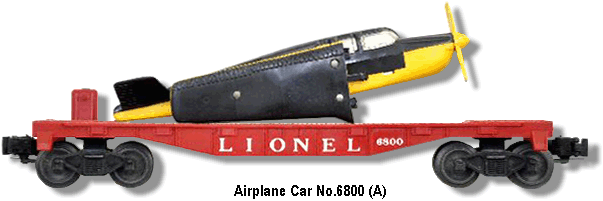

Airplane Car No. 6800 A Variation
spacer
No. 6800 Late Classic Box End
spacer

Lionel Trains Airplane Flat Car No. 6800The Airplane Flat Car No. 6800 came with a Beechcraft Bonanza airplane that was either YELLOW over BLACK or these colors were reversed. Lionel sold these airplanes separately under the number 6800-60. Early issues of this car in 1957 would have bar-end trucks, while later issues have AAR trucks with disc couplers. This car was not produced after 1960. The airplanes are found in with two different shades of YELLOW. These airplanes differed from those that were used on the later issued No. 6500 in that the wings were held together with three rivets. Also, there is no lettering on the wings as exists on the planes that were included with the No. 6500.

No. 6800-60 Box End

Reproduction airplanes have been produced and some of the earliest of these even included the inscription that was on the originals. Because of this, these they are very difficult to detect. The original airplanes were marked on the bottom "No. 6800-60 AIRPLANE / THE LIONEL CORPORATION / NEW YORK NY / MADE IN U.S. OF AMERICA".
spacer
Came with Instruction Sheet No. 6800-62 dated 11-57 that is illustrated below.
spacer
There are four variations:
spacer
Variation A: Produced on a No 6424-11 mold with the number to the right of the "LIONEL" inscription on the sides. Came with bar-end trucks. 1957 production.
spacer
Variation B: Produced on a No. 6424-11 mold with the number to the left of the "LIONEL" inscription on the sides. Came with AAR trucks. 1958 production.


spacer
Airplane Car No. 6800 B Variation
spacer

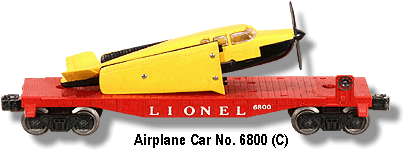

Airplane Car No. 6800 C Variation

Variation C: Produced on a No. 6511-2 mold with the number to the right of the "LIONEL" inscription on the side. This was not the normal production for cars with AAR trucks.
spacer
Variation D: Same as Variation C except the number has been moved to its normally found position to the left of the "LIONEL" inscription on the side. Came with AAR trucks.
spacer

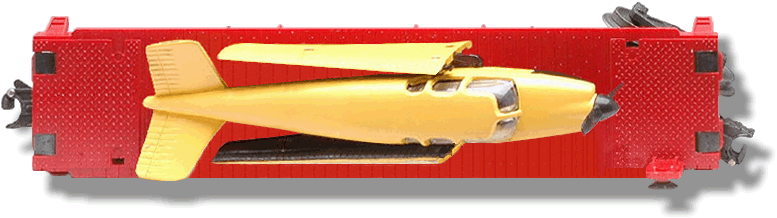

No. 6800 Top View
spacer

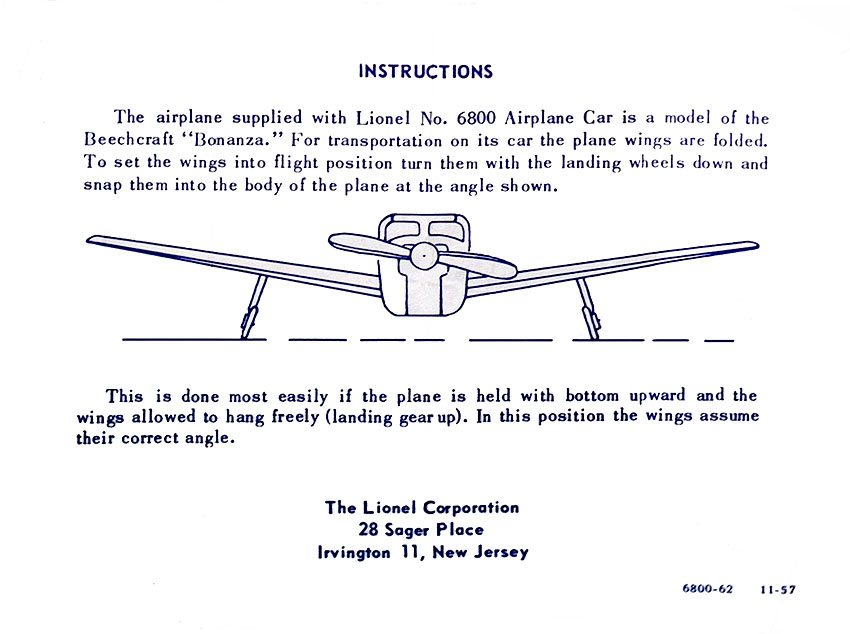

No. 6800-62 Instruction Sheet
