This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Blinking Signal with Bell No. 155 LIONEL TRAINS BLINKING SIGNAL WITH BELL No. 155

black horizontal bar

Lionel Trains Blinking Signal with Bell No. 155 A Variation

Lionel Trains Blinking Signal with Bell No. 155The Blinking Signal with Bell No. 155 was produced between 1955 and 1957. This signal uses the warning lights cross beam from the No. 154 Highway Signal, and the cross buck that was on the No. 140 Banjo Signal. Other than these parts, all of the remaining construction was new for this accessory.
spacer
This signal is a clever adaptation of Lionel’s venerable vibrator that had three impeller vanes attached. When activated by a No. 145C Track Contactor this signal’s vibrator’s three vanes would rotate. One vane triggered the bell and the other two caused the lights to flash alternately by causing leaf contacts to complete the circuit. The rotation of the vanes was caused by an adhesive and rubber washer with prongs similar to what was used on the No. 3520 Searchlight Car (Adhesive Washer Part No. 3520-42) (Rubber Washer Part No. 3520-16). The driving "fingers" on the rubber washer eventually wear down and when this happens the signal will not operate. Replacement parts are available. The Lionel Service Manual states that a graphite lubricant should be used on the cup that the rubber washer rides on and that any type of oil or grease lubricant should NEVER be used.
spacer
In 1956 Lionel would replace the leaf contact mechanism (Part No. 155-40) with a coil spring assembly (Part No. 155-70) that offered a more reliable operation. The Lionel Service Manual for 1956 advised not to replace these individual parts, but to instead replace the whole mechanism. In addition, Lionel would add rubber grommets to the base. Lack of these grommets in the base is the simplest way to distinguish a 1955 issue.
spacer
Lionel had the same problem with the WHITE color of the base turning a CREAM color, or an even darker shade of CARAMEL that happened to other items that they produced during this period like the No. 57 AEC Vulcan Switcher and the No. 6376 Circus Car. However, among these similarly afflicted items is often found some that have not turned color indicating that at least two different types of WHITE plastic was used during their production.

Reader input is desired on this subject concerning the coloration of the base of this Ringing signal. Please use the contact link at the bottom of this page.
spacer
There is only one instruction sheet that was issued for the Ringing Highway Signal. There were, however, two different printings of the No. 155-44 dated 9-55. One used LIGHT BLUE ink, and the other used BLACK ink. Both were printed on WHITE pager. We’ve pictured the front and back page of the BLACK ink version below.
spacer
Although the instructions call for the use of the No. L53(R) lamps, No. L363(R) which are used on the No. 154 Highway Signal can also be used. The difference between these lamps is that the No. 53(R) uses 0.10 amps and the No. 363(R) is rated at 0.20 amps.
spacer
Optimum performance of the ringing highway signal is best accomplished through a variable accessory voltage circuit.
spacer
There are three variations:
spacer
Variation A: Early version that lacked the rubber mounting grommets that were on the fastening tabs on the base and used leaf spring copper contacts. 1955 production.
spacer
Variation B: Has an improved coil spring mechanism and came with rubber mounting grommets on the base. 1956-57 production.
spacer
Variation C: Identical to Variation A except without the BLACK stripes on the base. Most likely a factory error.
spacer
Dimensions: 3" x 3-1/8" base. 8-1/2" tall.
spacer

The bottom of the No. 155 - Note: binding clips to left
spacerNo. 155 Late Classic Box End
spacer
No. 155-44 Instruction Sheet Front Page
spacer

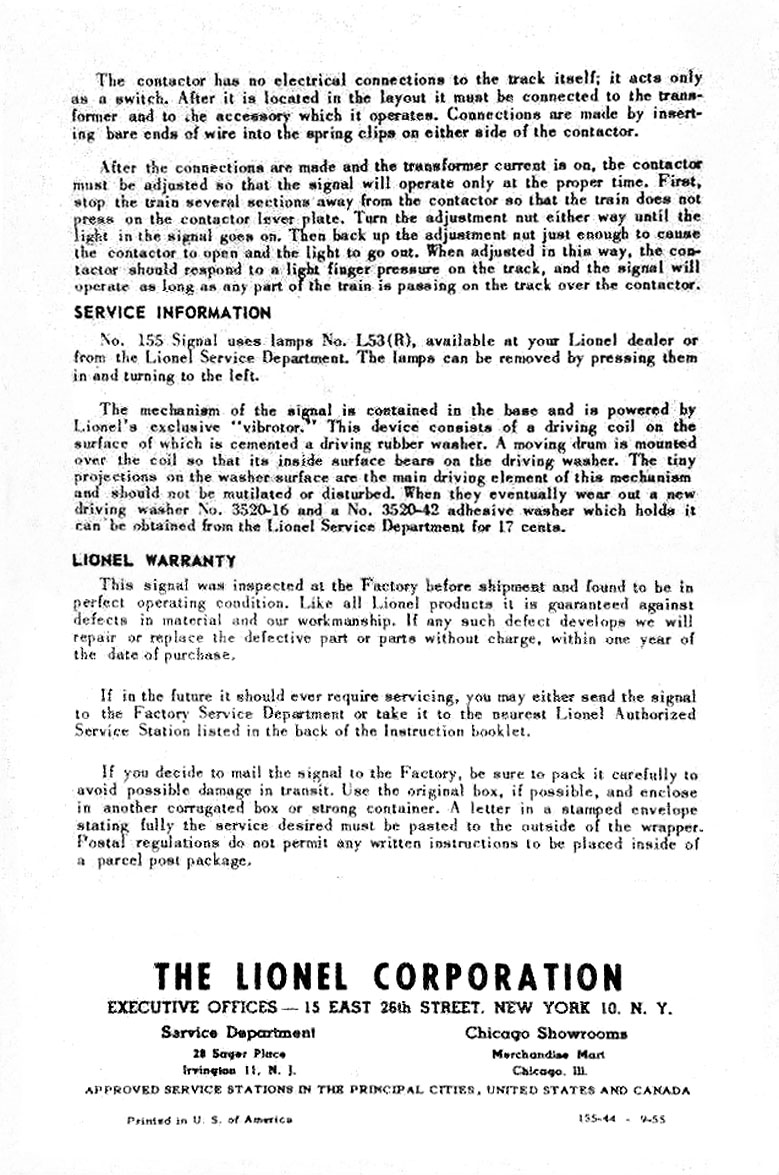

No. 155-44 Instruction Sheet Back Page
