This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

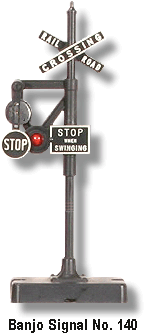

Lionel Trains Banjo Signal No. 140 LIONEL TRAINS BANJO SIGNAL No. 140

black horizontal bar

Lionel Trains Banjo Signal No. 140

Lionel Trains Banjo Signal No. 140The Banjo Signal No. 140 would move the arm "STOP" sign back and forth across the RED L53R light as a train passed by. This was accomplished with the use of a vibrating drum that rotated when current was applied from accessory voltage and this was activated from the weight of the train going over a No. 145C Contact that was placed beneath the track. This signal was available from 1954 until 1966.
spacer
For improved operation it is essential that the drum and the the neoprene pronged washer on the vibrating coil be clean and free of dust and oil. We recommend using a variable voltage source for optimum performance.
spacer
Lionel housed this signal in a variety of different boxes over the years of production. This included a blister pack that was numbered B140 that was issued in 1966 which was the last year that this signal was produced.
spacer
Two different instruction sheets were issued under the No. 140-59 and both are dated 8-54.
spacer

No. 140 Middle Classic Box End

No. 140 Orange Box End
spacer

The first used BRIGHT BLUE ink and the second used BLACK ink. Both were printed on WHITE paper. Below we’ve illustrated the front page of the BRIGHT BLUE ink printed sheet. There are three variations:
spacer
Variation A: Has a BLACK painted finish.
spacer
Variation B: The base of the signal has a crackled BLACK painted finish.

Variation C: Housed in a blister pack No. B140 that was produced in 1966.
spacer
An identical Banjo Signal was produced in 1970-84 by MPC (No. 2140), so collectors should check the bottom of this signal to see if it has the following inscription:
spacer
"PART NO. 140-50 / NO. 140 BANJO SIGNAL / MADE IN U.S. OF AMERICA / THE LIONEL CORPORATION / NEW YORK"
spacer
Dimensions: 7-3/4 inches high on a 3" x 1-3/4" base
spacer

No. 145C Track Contact
spacer
No. 140-59 Instruction Sheet Front Page
