This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The Lionel 9-1/2’ Automobile Box Cars LIONEL TRAINS PENNSYLVANIA AUTOMOBILE BOX CAR No. X2458

black horizontal bar

The Lionel Trains Pennsylvannia Automobile Box Car No. X2458 Variation B
spacer
No. X2458 Early Classic Box End
spacer

The Lionel 9-1/2’ Automobile Box CarsThe Pennsylvania Automobile Box Car No. X2458 replaced the No. X2758 in 1946. There is no difference between these cars save for the number. This is a pre-war design car that is made out of sheet metal and was produced from 1946 until 1948.
spacer
Note that the large number printed on the sides, "61000," is not the production number. The production number is shown in the panel to the right of the car data. This automobile car is painted BROWN and had "right" and "left" separately cast metal doors that were painted to match. WHITE heat-stamped lettering was applied to the car sides. During production in 1947, the rivet below the "8" in "X2458" was removed because it did not allow the proper alignment of the heat-stamp that was being used to apply the lettering.
spacer
Separate BLACK metal ladders are attached to the car sides and this car is usually found with steps at the four corners. The underside of the chassis showed detail that included an air reservoir with valves and a brake cylinder. It was equipped with staple end trucks equipped with electronic couplers.
spacer
There are three variations:
spacer
Variation A: 1946, Type 3a trucks, with a rivet below the "8" in X2458.
Variation B: 1947, Type 3b trucks, with a rivet below the "8" in X2458.
Variation C: 1947-48, same as (B), but with no rivet below the "8" in X2458 and no side steps.
spacer

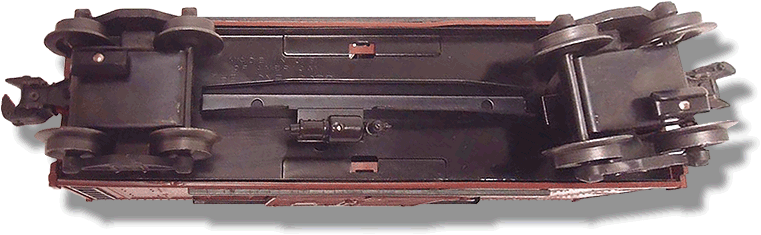

Bottom View of No. 2458 note the under chassis detail and the slide shoes that control the electronic couplers
