This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Turbo Missile Launching Flat Car No. 3309LIONEL TRAINS TURBO MISSILE LAUNCHING FLAT CAR No. 3309

black horizontal bar

The Turbo Missile Lauching Car No. 3309 The Turbo Missile Lauching Car No. 3309

Lionel Trains Turbo Missile Launching Flat Car No. 3309The Turbo Missile Launching Depressed Center Car No. 3309 was frequently found in uncataloged sets in 1963 and 1964.
spacer
The "Turbo Missile" is a wheel shaped circular molded WHITE plastic piece with a RED center and tip. This was launched by spring device located in the depressed portion of the flat car. This depressed center flat car was molded in several colors and only rarely is found with an extra BLUE molded rack that held a spare missile as was issued for the No. 3349. The other distinguishing difference between these two flat cars is that fact that this car came with either AAR or Arch Bar trucks that would have either one, or both fixed couplers.
spacer
There are three different instruction sheets for this car. All are dated 7-62. We’ve shown the No. 3309-5 below.
spacer
There are four variations:
spacer

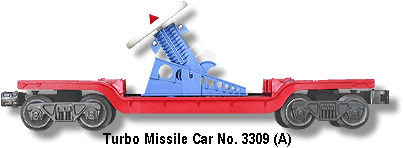

Variation A: Has a LIGHT RED molded flat car.
spacer
Variation B: Has a darker CHERRY RED flat car.
spacer
Variation C: Indentical to Variation A but has a TEAL colored Turbo Missile Launcher spring device. Believed to have originated with Madison Hardware.
spacer

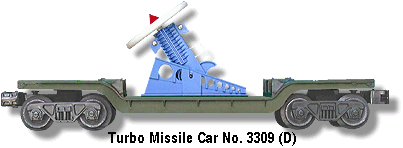

Variation D: Has an OLIVE DRAB colored flat car that was made for set No. 19334 and was sold by J.C. Penny during 1963-64 among other uncataloged sets. This is the hardest variation of this car to find.
spacer

No. 3309-5 Instruction Sheet Page 1
spacer
No. 3309-5 Instruction Sheet Page 2
spacer

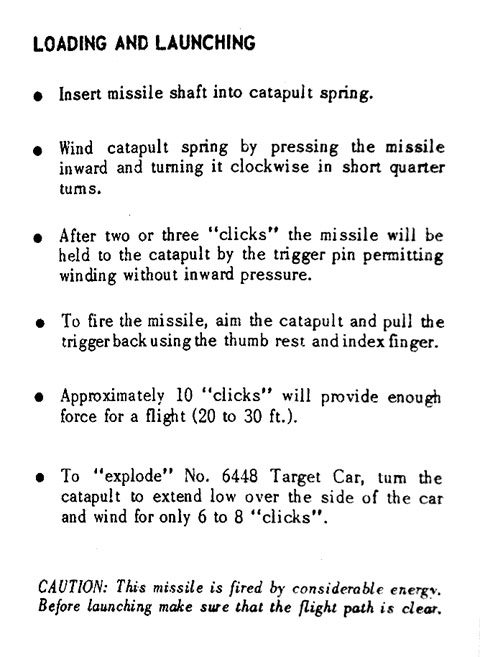

No. 3309-5 Instruction Sheet Page 3
spacer

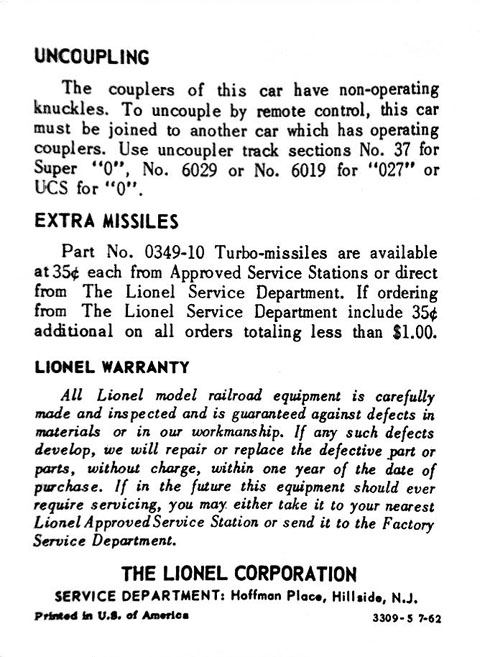

No. 3309-5 Instruction Sheet Page 4
