Lionel Electric Trains Identification Guide Sub-Title Bottom of Page

This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

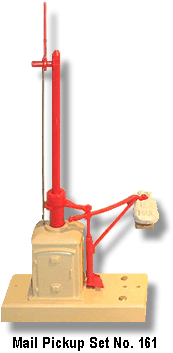

Lionel Trains Mail Pickup Set No. 161 LIONEL TRAINS MAIL PICKUP SET No. 161

black horizontal bar

Lionel Trains Mail Pickup Set No. 161

Lionel Trains Mail Pickup Set No. 161The Lionel Mail Pickup Set No. 161 is unique among the accessories that Lionel produced. It is the only accessory that would transfer any load to a passing car.
spacer
It was designed to do this with the clever use of a magnet attached to a RED plastic painted GRAY mail bag and the use of an electronic coil contained in the stand than moved to mail bag transfer arm.
spacer
Another magnet (No. 161-23) is attached to any car to grab the bag. The Mail Pickup Set was available from 1961 until 1963.
spacer
The placement of this accessory is critical to its proper operation and some shimming or other alignment of the base may be necessary. The instruction sheet says it should be 2-1/4 inches from the track. This is why it operates best on a permanent layout.

No. 90 Controller

Lionel included in the parts envelope (No. 161-31) a magnet (Part No. 161-23) and special glue capsule (Part No. 3330-102) that was to be used to attach the magnet to a car. As the train passed by, and the rotating arm on the No. 161 was activated with a No. 90 Controller, the bag was detached from the arm by the magnet that was on the side of a designated car. This magnet, and the glue to attach it to the car (No. 3330-102) are often missing from this accessory.
spacer
See a catalog illustration of this accessory.
spacer
The mail bag (Part No. 161-17) is not the same as those that were used by the No. 3428 Mail Car (Part No. 3428-11 or 3428-22) which is smaller. This mail bag assembly is also often found missing.
spacer

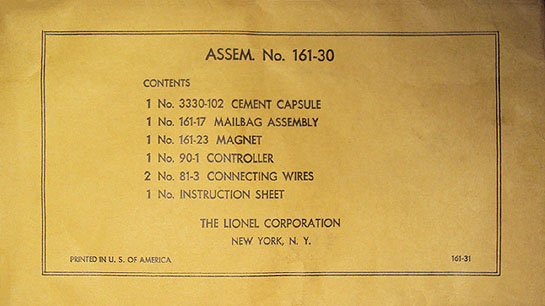

No. 161-31 Parts Envelope
spacer

The plastic TAN base has a RED post and arm and a RED and WHITE semaphore. There are no variations.
spacer
A fold over instruction sheet No. 161-32 dated 9-61 was included with this accessory. It has BLACK ink that was printed on WHITE paper. We’ve pictured all four pages of this instruction sheet below.
spacer
Dimensions: 4" long, 1-7/8" wide, 8-5/8" high when the semaphore is pointing up.
spacer

No. 161 Mail Pickup Set Box End
spacer

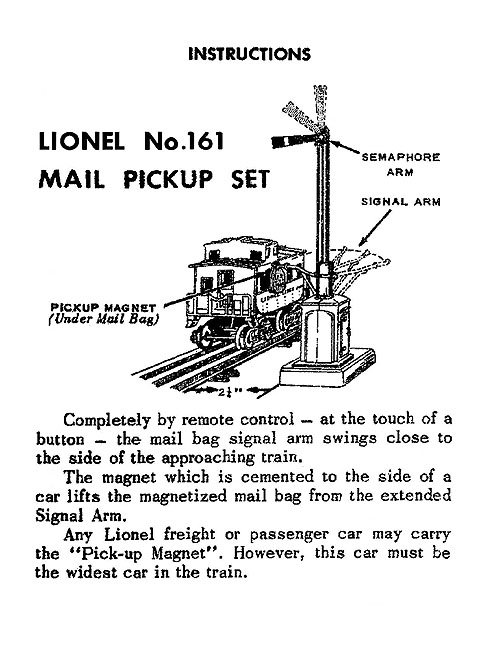

Instruction Sheet No. 161-32 Page 1
Courtesy of R. Welch Collection
spacer

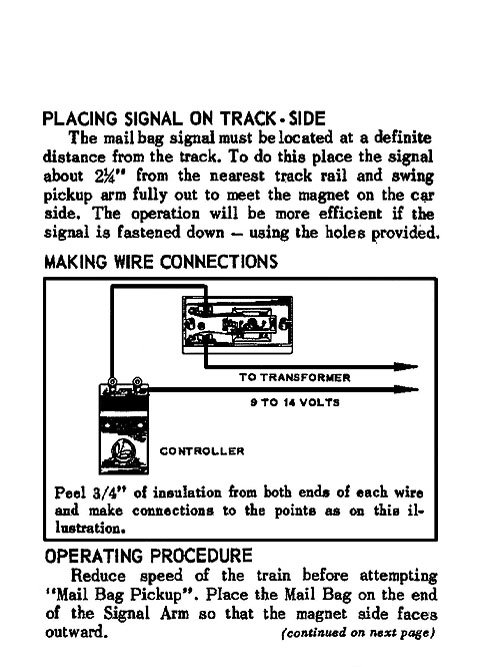

Instruction Sheet No. 161-32 Page 2
Courtesy of R. Welch Collection
spacer
Instruction Sheet No. 161-32 Page 3
Courtesy of R. Welch Collection
spacer

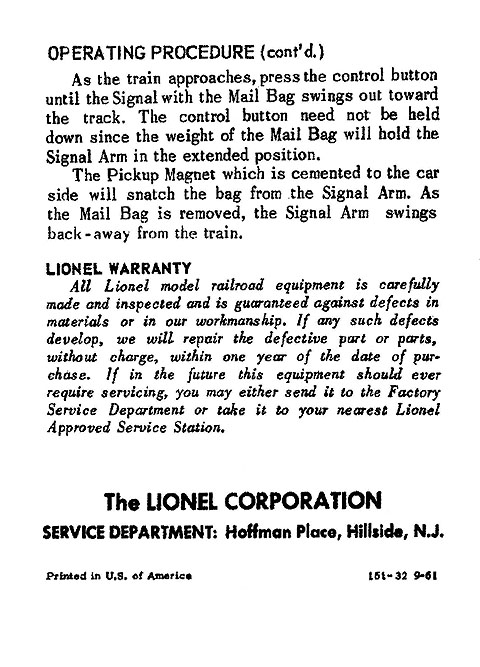

Instruction Sheet No. 161-32 Page 4
Courtesy of R. Welch Collection
spacer
