The Lionel SP Type Cabooses LIONEL TRAINS SP CABOOSE DIE TYPE VARIATION DETAILS

black horizontal bar

Cupola Window Frames
spacer
The front and rear facing windows on the cupola did not have window frames on all dies except for Die 4.


black horizontal barReturn To Previous Page

Step Width
spacer
The steps for this caboose were, when viewed from the bottom, all of the narrow type with the exception of Die 4.


black horizontal barReturn To Previous Page

Smoke Stack Reinforcement
spacer
Lionel would reinforce that smoke stack opening on those cabooses that had a smoke stack during the early production of this car. This practice was discontinued on Die 3, 3A, and 3B, and would be reinstated to accommodate the No. 6557 Smoking Caboose in 1958, and would continue until the end of production in 1969 on Die 4.


black horizontal barReturn To Previous Page

Smoke Stack Plug
spacer
On those cabooses that did not have a smoke stack Lionel would plug this hole in three different fashions:

Stack Plug Variations

Rim - the rim was raised and was parallel to the catwalk with a recessed center. Used on Die 1, 1A, 2, and 2A.
Raised - the plug was raised parallel to the roof slope. Used on Die 3.
Lowered - The plug was below the roof line and parallel to the catwalk. Used on Die 4.


black horizontal barReturn To Previous Page

Side Rivets
spacer

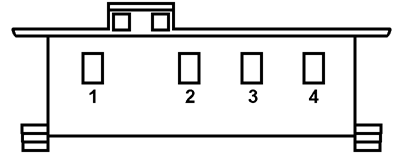

There are eight rivets below the side windows number 3 and 4 on Dies 1, 3A, 3B, and 4.
spacer
There are four rivets below the same windows on Dies 2, and 3C.

Side Rivets below window No. 3 and 4
black horizontal barReturn To Previous Page

Ladder Slots
spacer
Early editions of this caboose would have end ladders. After these were removed from production the slots to hold them were still present in the Dies that made the bodies. These slots are found on Dies 1, 2, and 4.
spacer
They have been removed on all varieties of Die 3.


black horizontal barReturn To Previous Page Top of Page
Bottom of Page

Side Grab Rails
spacer
Side Grab Rails touch the second rivet on Dies 1, and 1A.
spacer
Side Grab Rail clears the second rivet on Dies 2, 2A, and 3.
spacer
Side Grab Rail touches the third rivet on Die 4.


Side Grab Rail Rivet Variations

black horizontal barReturn To Previous Page

Cupola Roof Rails
spacer
High Roof Rails on Dies 1, 1A, 2, and 2A.
spacer
Low, Short Roof Rails (11/32" = A) on Die 3.
spacer
Low, Long Roof Rails (3/16" = A) on Dies 3A, 3B, and 3C.

Roof Railing Variations

black horizontal barReturn To Previous Page

Door End Rivets
spacer
On the door ends of this caboose there are no Extra Rivets between the door rivet row and the roof rivet row on Dies 1, 1A, 2, and 2A.
spacer
The door ends have extra rivets between the door rivet row and the roof rivet row (Note: the RED arrows in the picture) on Die 3, 3A, 3B, 3C, 3D, and 4.


End Rivet Row Varations

black horizontal barReturn To Previous Page

Roof Wedges
spacer

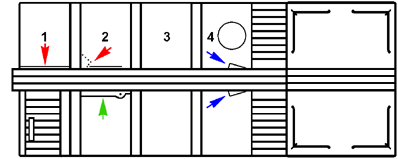

On Panel 4 near the catwalk are two wedges (BLUE arrows) that are a result of a repair to the casting die. Seen only on Dies 3B and 3C.
spacer
black horizontal bar
spacer
Extra Rivets and Lines
spacer
As a result of damage to the casting die Panel 1 and 2 have faint lines and rivets on all of the Die 3 variants (RED arrows).
spacer
black horizontal bar
spacer
Extra Catwalk Board
spacer
The ladder slot and this extra "board" appear only on early issues of the Type 3 Die (GREEN arrow).

Roof Variations caused by damage

black horizontal barReturn To Previous Page

Catwalk Supports
spacer
One of the changes that is found in Die 4 is the end supports for the catwalk that were cast into the body of this caboose. These supports are only found on Die 4 and it is probably the easiest way to determine if this casting was used.


spacer
Catwalk Support Variation

black horizontal barReturn To Previous Page
