This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Searchlight Car No. 6822LIONEL TRAINS SEARCHLIGHT CAR No. 6822

black horizontal bar

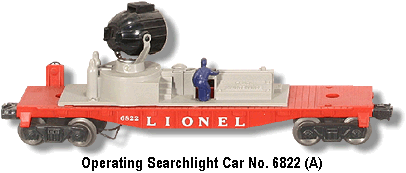

Lionel Trains Searchlight Car No. 6822 Variation A

Lionel Trains Searchlight Car No. 6822The Operating Searchlight Car No. 6822 was built on a RED No. 6511 flat car chassis with WHITE heat stamped lettering between 1961 & 1969.

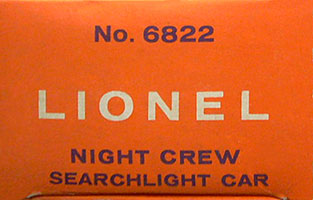

No. 6822 Orange Picture Box End
spacer

The searchlight superstructure that was placed on top of this car was lettered "TRACK / MAINTENANCE" and also had simulated shovels, oxygen tanks and wire rolls. There is a BLUE attendant that most often is found with a painted face.

This car has AAR trucks that has either two operating disc couplers, or one operating, and one solid non-operational coupler.
spacer
There are three variations:
spacer
Variation A: GRAY superstructure with BLACK searchlight housing and AAR trucks with one disc and one solid coupler.
spacer

No. 6822 Late White rubber-stamped Box End
spacer

Variation B: BLACK lighting unit with a GRAY searchlight housing. This variation has AAR trucks with disc couplers.
spacer
Variation C: Is a scarce 1966 version that was heat-stamped "6828" in error.
spacer
MPC released this car in the Modern Era without the attendant.
spacer

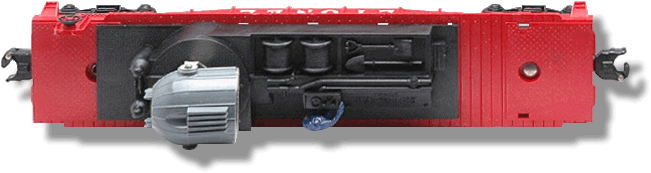

Top View of Variation B
