This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The Lionel SP Type Cabooses LIONEL TRAINS SP TYPE LIONEL LINES CABOOSE No. 6017

black horizontal bar

Lionel Lines Caboose No. 6017 Variation M
 No. 6017 Middle Classic Box End No. 6017 H Var. Late Bold Classic Box End

The Lionel SP Type CaboosesThe Lionel Lines Caboose No. 6017 was produced beginning in 1951 and continued until 1962. It was used in Lionel’s more economically priced sets and really isn’t taken very seriously by collectors today. Which is why there is information that is lacking about the variations. During the period this caboose was in production there were many changes that occurred that encompass all of the body Die Types that Lionel used on the SP caboose. Prior to 1958, these cabooses had metal trucks, and after this year they are early AAR with disc couplers. See the table below for the details about the variations of this caboose.

There are many blank spaces on this chart (??) that we just don’t know the information. Reader help is solicited to aid us in filling in this unknown data.

 No. 6017 Picture Box End Variation G

LIONEL LINES No. 6017 CABOOSE VARIATIONS
VAR. DIE PAINTED/LETTERED PLASTIC FASTENED TO BODY TRUCKS COUPLERS BOX No.
A 1 LIGHT TUSCAN/WHITE GRAY with TABS AAR DISC 6017
B 1 TUSCAN/WHITE ?? with SCREWS BAR-END TABBED ??
C 1A BROWN/WHITE ?? with TABS AAR DISC ??
D 2 GRAY/BLACK ?? with TABS AAR DISC 6017-85 *
E 2 FLAT MAROON/WHITE MARBLED with TABS AAR DISC ??
F 2 DARK BROWN/WHITE ?? with TABS AAR DISC ??
G 2 DULL RED/WHITE GRAY with TABS AAR DISC 6017
H 2A DARK TUSCAN/WHITE AQUA with TABS AAR DISC 6017
I 3A — /WHITE RED with SCREWS STAPLE-END MAGNETIC ??
J 3A SHINNY TUSCAN/WHITE ?? with SCREWS BAR-END MAGNETIC ??
K 3B — /WHITE MAROON with SCREWS BAR-END MAGNETIC ??
L 3B SHINNY TUSCAN/WHITE ** ?? with SCREWS BAR-END TABBED ??
M 3C TUSCAN/WHITE TUSCAN with TABS AAR DISC 6017-1
N 4 DARK TUSCAN/WHITE BLACK with TABS AAR DISC ??
O 4 DARK TUSCAN/WHITE RED with TABS AAR DISC ??
P 4 BROWN/WHITE BLACK with TABS AAR DISC ??

  * Came with the Marine Corps Set No. 1595 in 1958. Relatively rare.
spacer
** 6017 is underscored.

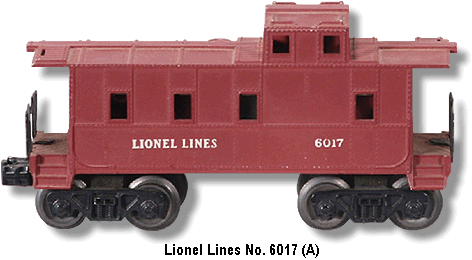

Lionel Lines Caboose No. 6017 Variation A Lionel Lines Caboose No. 6017 Variation G
