This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Coal Ramp No. 456 LIONEL TRAINS COAL RAMP No. 456

black horizontal bar

Lionel Trains Coal Ramp No. 456 B Variation
spacer

Lionel Trains Coal Ramp No. 456The Coal Ramp No. 456 came with a separately boxed No. 3456 Norfolk & Western Hopper Car that was designed to work with this accessory. Once this car was pushed up the ramp and was coupled at the top to hold it in this location, the coal could be dumped out of it remotely with the use of the No. 456C Controller. Included was a No. 456-5 Parts Envelope that contained mounting screws to hold an adjoining track at the bottom of the ramp. In addition, two No. 456-85 Mounting Pins were included to attach the MAROON Coal Bin No. 456-84 to the No. 397 Coal Loader making this accessory reciprocating. Also included was a bag of Coal No. 206.

Coal Ramp Controller No. 456C

First available in 1950, it is of all metal construction, with the exception of the RED light cover and the MAROON coal bin. There are two variations:
spacer
Variation A: For the first year of production this coal ramp was a DARK GRAY color. Units have been found that have a DARK GRAY base and a LIGHT GRAY ramp end indicating that there was a transition period during production in 1950. Used braided line for the ramp that is about the same as what would be used to hang a picture.
spacer

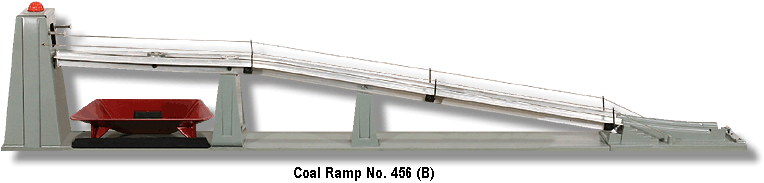

Variation B: Has a LIGHT GRAY base and ramp end. Used fishing line for hand rails. 1951 to 1955 Production.
spacer
The hand rails are often found in broken condition on this accessory. Lionel doesn’t mention in the Service Manual the use of fishing line. This is perhaps because this line will work on the earlier issued 1950 version.

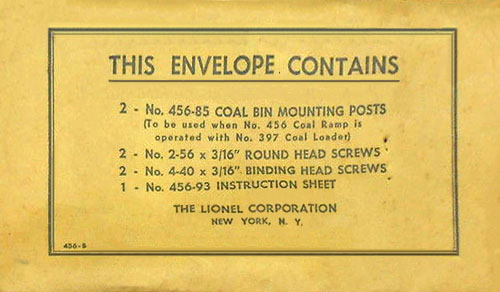

No. 456-5 Parts Envelope

Repairs made to these hand rail lines using fishing wire should include the wire end Eyelet No. 456-73, Spring No. 456-62, and Washer No. 456-124 that keep the tension on the wire yet allow flexibility if snagged. This prevents the breakage of the hand rail stanchions.
spacer
Over the six years that the coal ramp was in production Lionel would issued seven instruction sheets under the No. 456-93 and dated 10-50, 11-50, 3-51, 5-52-,8-53, 8-54, and 4-55. All were printed with DARK BLUE ink on WHITE or TAN paper.
spacer
The first revision of this instruction sheet occurred only one month after the initial issue. Lionel made a couple of changes to the text including the suggestion that the coupling of the Norfolk & Western Hopper Car to the top of the ramp is easier if the ramp coupler is open (Part No. 456-25) and the car coupler is closed. They also advised the purchaser to shim the ramp so that it is level to allow the car to readily descend the ramp after unloading.
spacer
Below we’ve pictured three pages of the instruction sheet dated 3-51 (Numbered 456-93—3-51—TT) that shows these text revisions.
spacer
Dimensions: 35-1/8 inches long, 3-3/8 inches wide, and 6-7/8 inches high at the top of the lamp cover.
spacer

No. 456-85 Coal Bin Mounting Posts
Coal Ramp No. 456 Box Side View
spacer

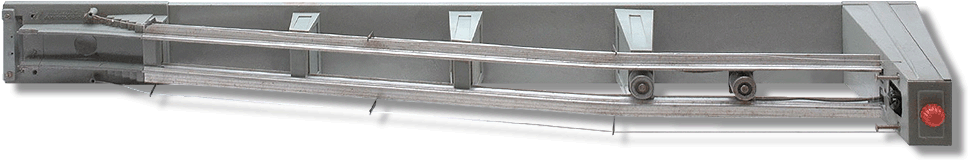

No. 456 Top View

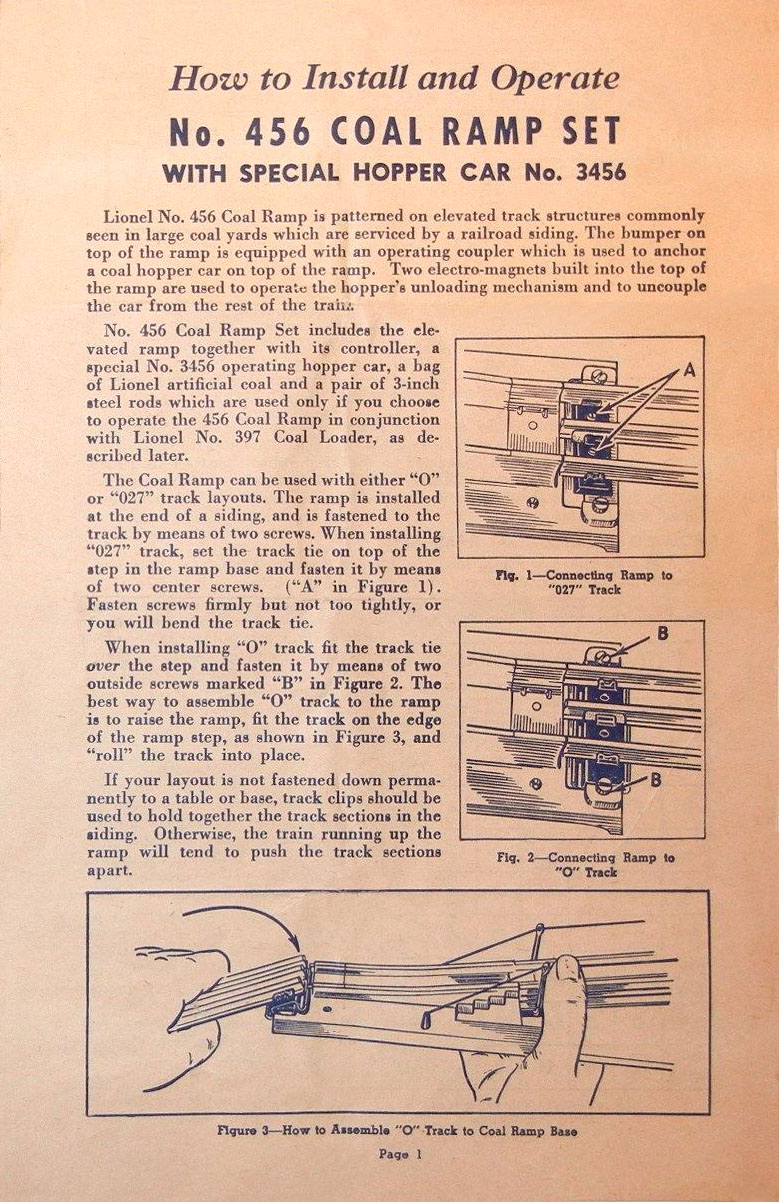

No. 456-93 Instructions Page One
spacer

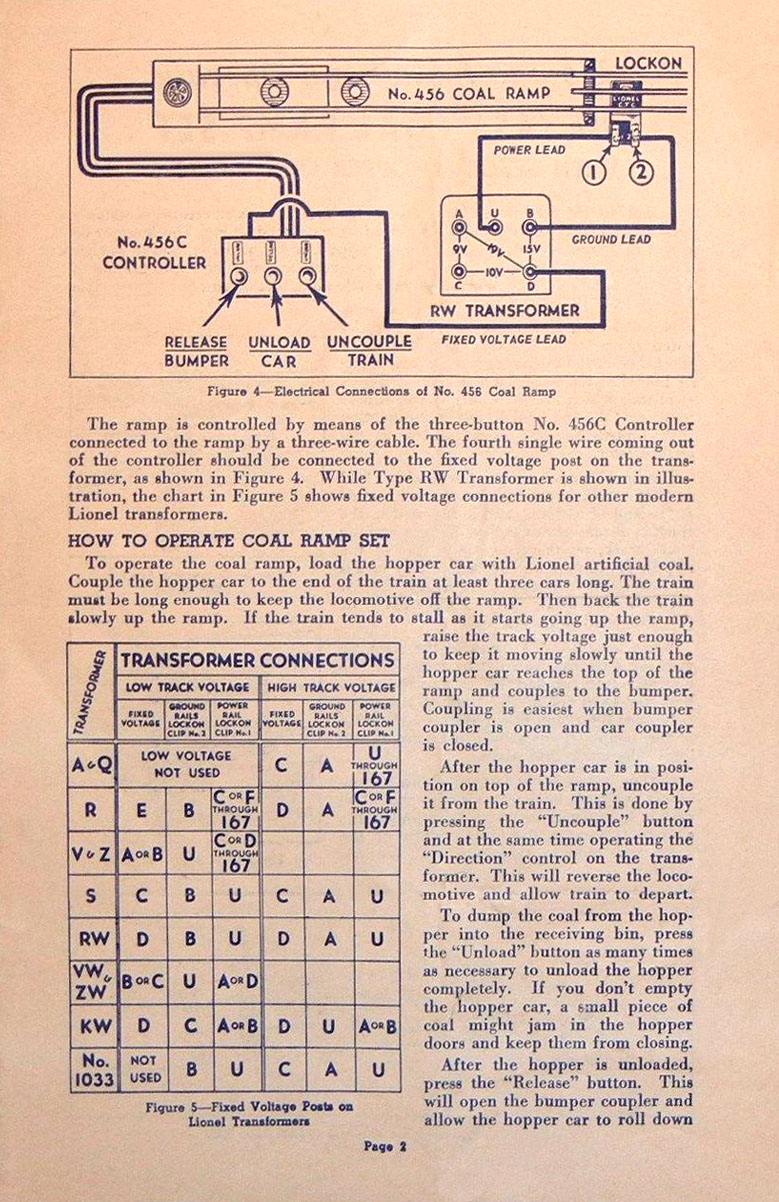

No. 456-93 Instructions Page Two
spacer

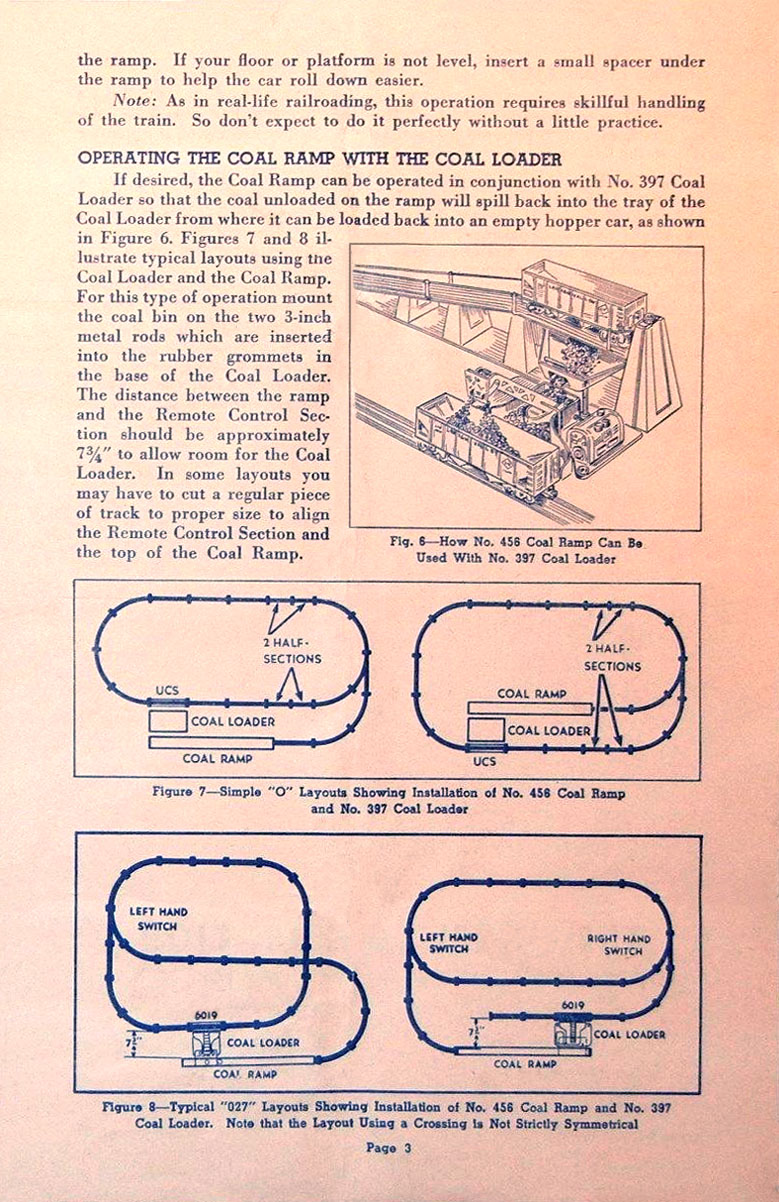

Page three of No. 456-93 Operating Coal Ramp Instruction Sheet
