This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Arch Under Bridge No. 332 LIONEL TRAINS ARCH UNDER BRIDGE No. 332

black horizontal bar

Lionel Trains Arch Under Bridge No. 332
spacer

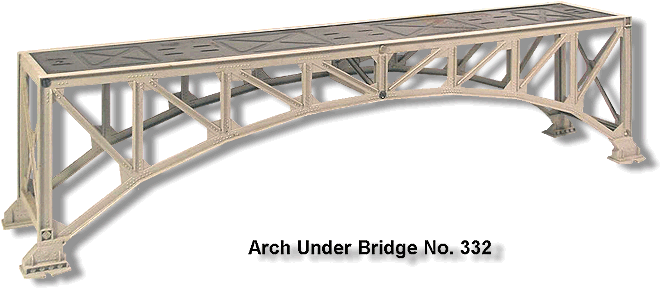

Lionel Trains Arch Under Bridge No. 332The Lionel Arch Under Bridge No. 332 came in kit form and had to be assembled by the purchaser. The main components of this kit consisted of BLACK painted metal plate, two arch spans, two end pieces, and a center brace. Accompanying these components was a parts packet that included six tie rods (No. 332-7), six nuts (No. 282-82), and instructions for assembly.
spacer
This bridge was available from 1959 until 1966. During this period there would be three variations that are mainly based on changes to the box:
spacer
Variation A: YELLOW box with double circled "L" part No. 332-11. Included parts envelope No. 332-15 and an instruction sheet that was erroneously numbered 322-16 and is dated 9-59. A picture of this sheet is shown below. Produced in 1959.
spacer
Variation B: ORANGE box with double circled "L." Came with a corrected instruction sheet No. 332-16 dated 9-59. Produced from 1960 - 1965.
spacer
Variation C: WHITE Hillside, N.J. box without double circled "L." Came with glued shut WHITE parts envelope No. 332-14 and an instruction sheet No. 332-16 dated 5/66. Produced in 1966.
spacer
Dimensions: 18-1/2" long, 4-3/4" high, 3-1/2" wide.
spacer

No. 332-15 Parts Envelope
spacer
No. 332 Box Variation A
spacer
No. 332 Box Variation C Note the lack of the circled 'L'
spacer
Arch Under Bridge No. 332 Variation A Box
spacer Arch Under Bridge No. 332 Variation B Box
spacer

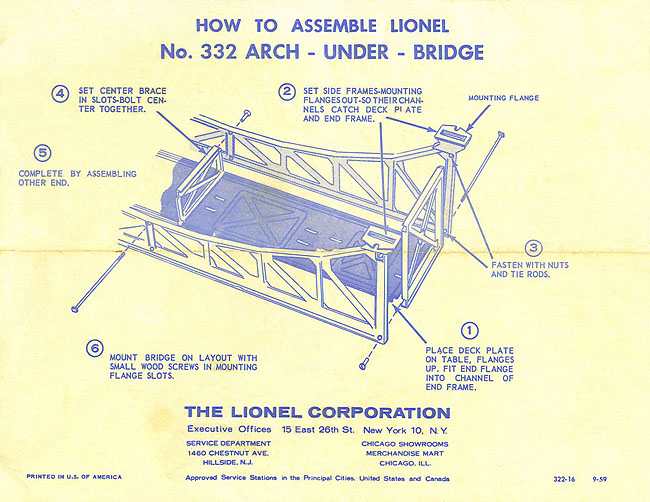

Instruction Sheet numbered 322-16 in error
