This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The 2400 Series Pullman Cars LIONEL TRAINS CHATHAM PASSENGER CAR No. 2422

black horizontal bar

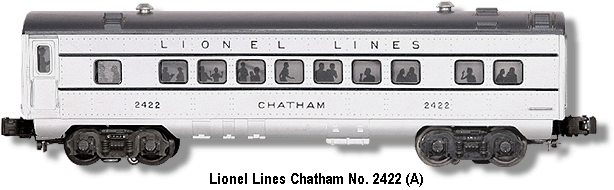

Lionel Lines Chatham Pullman Car No. 2422 Variation A
spacer
No. 2422 Box End
spacer

The 2400 Series Pullman CarsThe Lionel Lines Chatham Pullman Car No. 2422 when first released was cataloged as O Gauge in 1950. However, for all subsequent years (1951-53), it was shown in the catalogs as an O27 car. This car was based on the standard Pullman prototype of the time. This passenger car has a SILVER painted body with a GRAY painted roof, and BLACK stripes, window trim, and heat-stamped lettering. This car is lighted by two lamps that are held in place by metal brackets that are also used to hold the roof to the body. There are people silhouettes on the interior window inserts. It came with Type IV die-cast four-wheel passenger trucks equipped with electronic coil couplers. There are two variations:
spacer
Variation A: GRAY roof with BLACK stripes and window trim. Available in 1950 and 1951.
spacer
Variation B: SILVER roof with no BLACK stripes or window trim. Available in 1952 and 1953.

Issued in both O27 Gauge and O Gauge sets, this car will operate equally well on each of these tracks. Note: Collectors would be advised to check the alignment of the roof. Many of these early 2400 Series cars have the roof installed backwards at the Lionel factory. This places undue stress on the metal brackets that hold the roof in place. The rain shield end of the roof should be above the end of the car that has the doors.

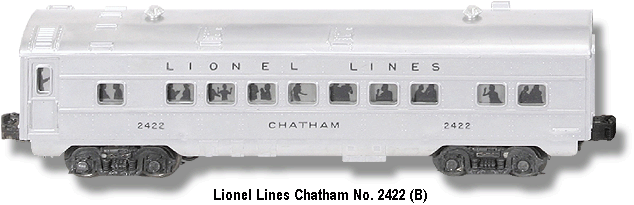

Lionel Lines Chatham Pullman Car No. 2422 Variation B
