This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Virginian FM Trainsmaster No. 2322 LIONEL TRAINS VIRGINIAN FAIRBANKS-MORSE DIESEL No. 2322

black horizontal bar

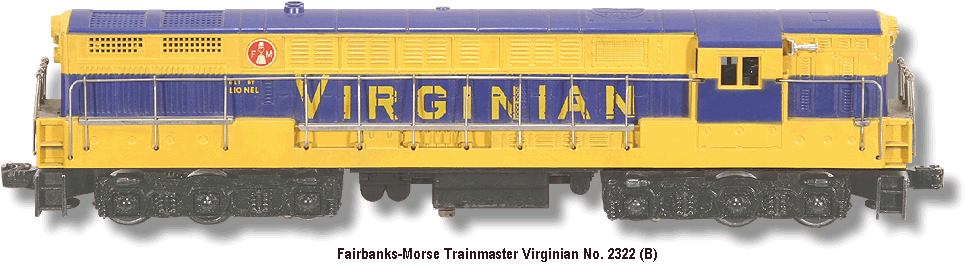

Lionel Trains Virginian FM Trainmaster No. 2322 Variation B
spacer

Lionel Trains Virginian FM Trainsmaster No. 2322The Lionel Virginian Fairbanks-Morse Trainmaster No. 2322 would reintroduce the Trainmasters again in 1965 and 1966. The lettering on this engine is rubber-stamped and the "VIRGINIAN" is the only one of this type of diesel that Lionel did not put their production number on the sides.
spacer
This diesel was equipped with Magnetraction, interior lights at both ends, dual vertical worm drive motors, horn, three position directional unit that is adjustable from the bottom, and operating disc couplers at both ends. Note the flanges on the wheels on the inner axles are missing. This is so that this engine could negotiate the tight radius of Lionel’s O Gauge track.

This engine will not operate on O27 Gauge track.
spacer
Some people have substituted the chassis of this engine on a body of the No. 2331 because of damage (usually battery) to its chassis. The only way to tell if this was done is to look at the motor armature windings. This version of this diesel has GREEN armature windings.
spacer
There are two variations:
spacer
Variation A: BLUE body that is painted YELLOW with a BLUE painted stripe and roof.
spacer
Variation B: BLUE body that is painted YELLOW with unpainted roof and stripe.

No. 2322 Box End
